VISPLO(Review Verification System Series) is a machine located downstream of AOI so that the operator can finally accurately detect the true defect. It receives NG information through linkage with AOI and provides real images of NG POINTs.
An internally mounted 360-degree rotating camera allows the operator to check leads such as lifting or chip open that are not visible from a flat surface.
By introducing this equipment, re-examination through existing magnifying glasses and microscopes is unnecessary.
- Automation of inspection process
- Eliminate risk of defect
- Quality improvement
- Cost-cutting
- Camera moves to all defective locations received from AOI, so all defects can be checked without touching the PCB.
- Accurate defects Inspection through the system.
- The operator does not need to wait by the machine all the time for inspection.
- The production line is not blocked by NG PCB during the inspection process.
1. Power
2. Light switch
3. Reset Button
4. NG Out Button
- Stacking up to 10 PCBs in the rack section
- If necessary, the operator calls the NG PCB stacked in the rack to the inspection area
- Notification via tower ramp before all the rack is filled
The operator do not need to wait in line all the time

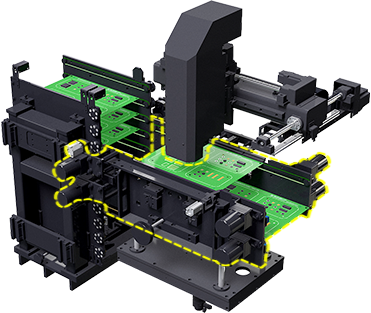

- 2F : NG PCB Inspection by 360º camera
- 1F : OK PCB bypass
- The final OK PCB is converted from NG to PASS and proceeds to the next process
- The final NG PCB is removed from the line
The production line is not blocked by NG PCB during the inspection process

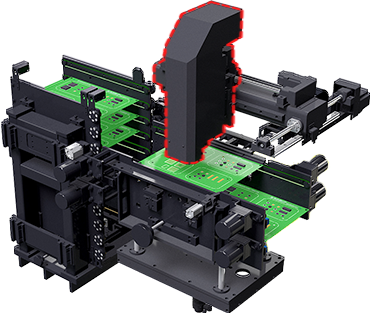

- The camera moves to the defective position received from the AOI and displays real-time video with NG information
- Operators can check the final NG/OK for all defective positions
- Camera 150x zoom/out available
All defects can be checked without touching the PCB
ARINET(Monitoring System)
ARINET software enables operators to control VISPLO remotely with real-time monitoring and in line verification
More
ARS(Auto Repair System)
ARS(Auto Repair System) is a function that shares the inspection data of the final NG processed PCB by VISPLO with the offline repair cell.
More
